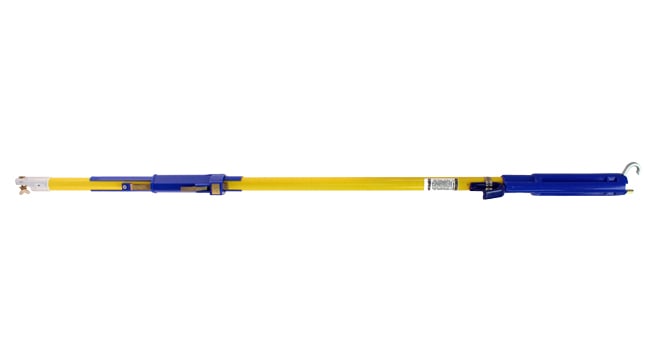

BLUE STRIPE® Shotgun Sticks

Utility Solutions offers both internal rod and external rod fixed length shotgun sticks in lengths ranging from 4-12 ft. BLUE STRIPE® Shotgun Sticks are manufactured from the highest electrical grade insulated fiberglass.

Key Features:

• Prouder button for ease of use with gloves and improved handling overall.
• Replaceable hanger hooks.
• Patented BLUE STRIPE® feature ensures ‘Stripe Up, Hook Down’ orientation. When the stripe is facing up, the stainless steel hook will open downward minimizing accidental drops.
• Stainless steel operating hook.
• Multiple rod guides ensure smooth operation.
• High performance closed cell foam prevents water absorption (external
rod models).

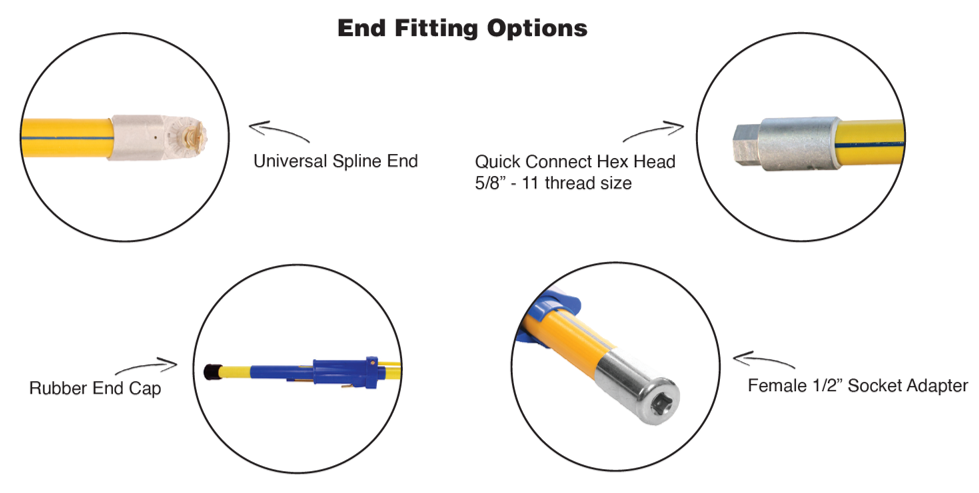

• Rubber Boot, spline end, socket adapter or quick connect options available.

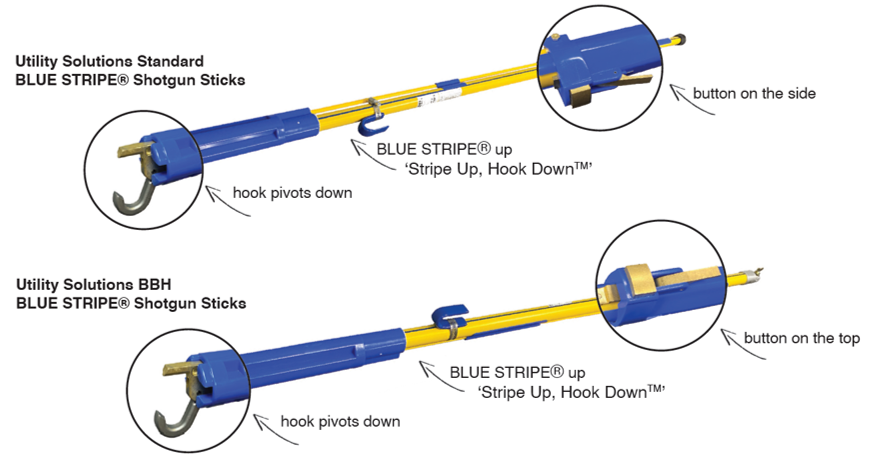

BLUE STRIPE® Shotgun Sticks are available with two distinct operating handle orientations.

The variations include the standard configuration (button on the side, hook pivots down) and a Bottom Break Hook (BBH) configuration (button on top, hook pivots down).

STRIPE UP, HOOK DOWN!

NEW ConduDisc Flex from SAE Inc.

Giving you more FLEXIBILITY for your grounding connections with the ConduDisc Flex.

ConduDisc Flex is a fully NEC compliant conductive grounding plate that enhances the performance and longevity of utility grounding systems while virtually eliminating electrode corrosion. A conductively encased galvanized metal plate that improves grounding performance and network reliability, ConduDisc Flex offers customers the ability to connect the wire gauge of their choice, job to job.

SAME GREAT ConduDisc Properties:

• Corrosion Proof Ground Plate
• Improved Safety Performance



MORE Applications Unleashed:

• Padmount Transformers and Grids
• Versatility in Wire Connections

Applications:

• ConduDisc Flex is ideally suited for use in situations where the utility requires flexibility in terms of conductor and connector sizes
• ANY Grounding application - 1, 2, 3, 4 connection applications
• Padmount Transformers and Grids - Versatility in Wire Connections

ConduDisc Flex   | The Reliable Choice:

By using the corrosion-proof ConduDisc Flex grounding system compared to the traditional metal ground rod system in use today, you will benefit from:

1. Improved safety during installation and maintenance and fault performance
2. Better asset protection and reliability by ensuring protection devices function as designed and reduction in resistance to ground
3. Reduced installation time and costs from a 90% time reduction
4. Lowest lifecycle cost due to elimination of typical maintenance and replacement needs

COMING SOON! FR Safety Lime Mechanics Hybrid Glove

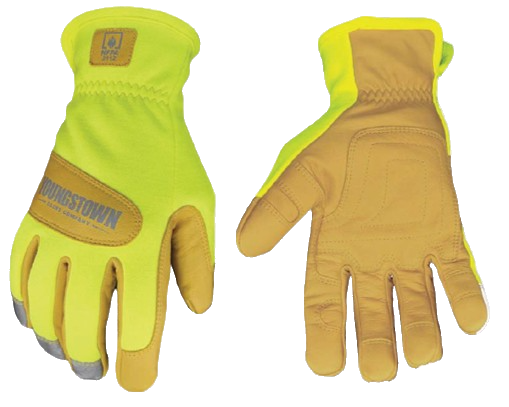

Youngstown’s NEW FR Safety Lime Mechanics Hybrid is compliant to NFPA 2112 standards for industrial flash fire. The glove features a flame resistant goat leather palm along with a brilliant safety lime FR Nomex® on the top of hand. The entire glove is lined throughout with 100% Kevlar® fiber. Reflective fingertips and printing enhance visibility in low light situations. The entire glove is sewn into Youngstown’s signature form-fit pattern for excellent dexterity and comfort.

This glove is flame resistant, cut resistant, puncture resistant and arc flash rated to 14 cal/cm2. The glove will not drip, melt, or ignite when exposed to flames or sparks.

Available for pre-order now! In Stock at the end of April

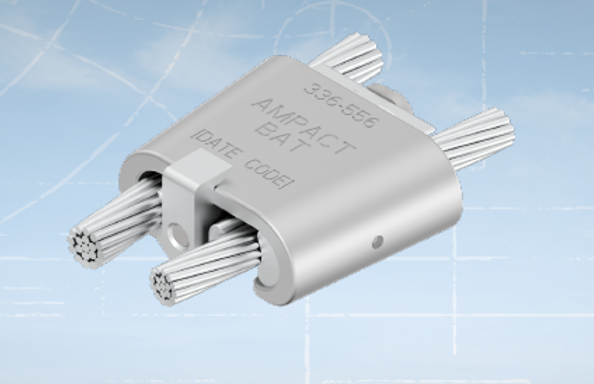

TE Connectivity´s (TE) AMPACT Bolt Actuated Tap (TAP) connector is part
of TE´s legacy brand AMP utility connectors portfolio. AMPACT BAT uses
wedge pressure technology that was pioneered by AMP 60 years ago to
deliver maintenance-free performance over the lifetime of the connection.

The AMPACT BAT is the second generation of TE´s wedge-pressure
connectors which provides the proven performance of AMPACT fired-on
wedge connectors without the requirement of a powder-actuated
installation tool.

The “C” and wedge are made of aluminum alloys. They are used to connect
solid and stranded aluminum, aluminum alloy and stranded aluminum
composite conductors including AAC, AAAC, ACSR, ACAR, AW, ACSR/AW,
and ACSS. They may also be used in non-corrosive environments to connect
copper conductors.

During the connection process, the AMPACT BAT wedge pressure
technology combines the abrading action between the conductor and
connector surfaces with an inhibitor that seals the connection. This prevents
air from reaching the mated material. The result is a longer-lasting, more
reliable electrical connection.

For the installation process, the AMPACT BAT tap connector develops and
maintains the clamping force on the conductor, through the residual elastic
load developed in the connector, ensuring the integrity of the connection for
the life of the installation. The elastic force also helps prevent creepage by
compensating for expansion and contraction of the assembly during thermal
cycling and the presence of an inhibitor in the electrical interfaces protects
electrical contact spots from corrosive attack during their lifetime.

Key Features:

• Easy to install with a standard impact wrench


• Tap connectors may be used to connect multiple conductor combinations


• No damage to the conductors when installing or removing
  the tap connectors


• Maintains a constant force within the connection for the
  life of the connector, while compensating for thermal expansion or “creep”


• Solid stop for visual inspection of properly installed connector
• Industry leading electrical performance to ANSI C-119.4 Class AA
• Can be installed with standard hot sticks using wedge holder
  PN: 2401416-1

FAQ:

Question: What are TE's AMPACT BAT connectors made from?

Answer: TE´s AMPACT BAT C-body, wedge, and bracket are made from aluminum alloys. The bolt is made from 304 Stainless Steel. (304 SS).

Question: For which conductors sizes can the AMPACT BAT be used?

Answer: AMPACT BAT connectors can accommodate main conductors from 266 AAC to 795 ACSR (14.90mm - 28.14mm). Tap conductors range from #6 AAC to 795 ACSR (4.11mm - 28.14 mm).

Question: Can AMPACT BAT be used on copper conductors?

Answer: AMPACT BAT connectors can be used to connect aluminum to copper conductors. For copper-to-copper applications, please contact your local TE Representative.

Question: Does AMPACT BAT require any special installation tools?

Answer: No, AMPACT BAT connectors are installed using industry-standard impact wrenches. Minimum:150 ft-lbs (200 Nm) torque rating.

Question: What size socket is required for connector installation?

Answer: Medium Tap Family: Impact socket size 9/16in (14mm)
Large Tap Family: Impact socket size: 3/4in (19mm).

Question: Does AMPACT BAT meet ANSI C119.4 Class AA?

Answer: Yes, AMPACT BAT is fully tested to ANSI C119.4 Class AA (Extra-heavy duty) which requires the ability to pass 500 current cycles at 175°C. Please contact your local TE Representative for testing documentation.

Question: Can AMPACT BAT be reused?

Answer: TE recommends using a new, unused connector for each installation.

Question: Can AMPACT BAT be installed using industry standard hot sticks?

Answer: Yes, AMPACT BAT connectors can be installed using industry standard hot sticks in conjunction with our AMPACT BAT hot stick adapte

2022 IEEE PES T&D Conference & Exposition
April 25th-28th, 2022 (New Orleans, LA)

If you are attending the upcoming 2022 IEEE Conference and Exposition, be sure to check out our principals at the following booth #'s:

• American Polywater- #7921
• BTECH, Inc.- #7220
• Micatu- #5857
• Richards Manufacturing- #4129
• SAE Inc.- #3548
• SNC Manufacturing- #3904
• TE Connectivity/Raychem- #6613
• Tech Products- #7523
• Trayer- #8051
• Utility Solutions Inc.- #5851

 For more information or a quote on any of the products featured in this newsletter, please reach out to Ryan Campbell at rcampbell@powertech-upsc.com or
(860) 678-8772.

Powertech Associates and Utility Power Supply offer the latest products and solutions available in the Utility Industry.  We are committed to meet the needs of our customers through quality product solutions and proven customer service.
